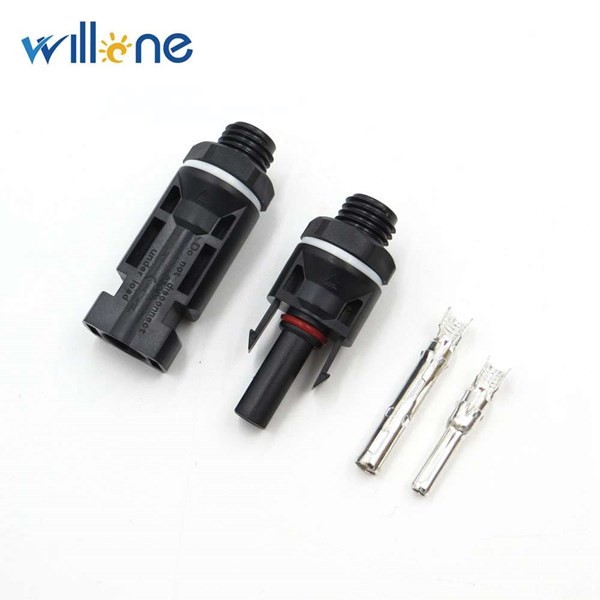

Description
Specification:
-Rated Current: 30A
-Rated voltage: 1000VDC
-Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)
-Contact resistance: ≤0.2mmΩ
-Waterproof degree：IP67
-Flame class: UL94-VO
-Safety Class: Ⅱ
-Withdrawal force: ≥50N
-Pin dimension: 4.0mm dia.
-Insertion force: ≤50N
-Insulation material: PPO
-Connecting system: crimping connection
-Contact material: copper, tin plated
-Temperature range: -40 ℃ ~ +90 ℃
