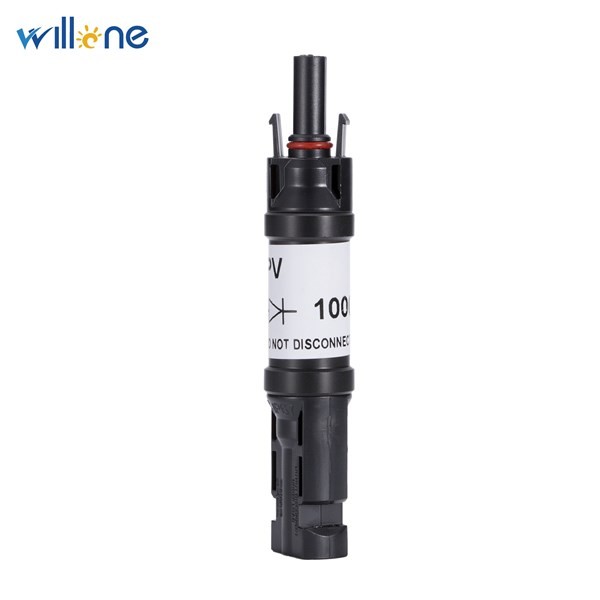

Description
Rated Current: 30A
Rated voltage: 1000VDC
Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)
Contact resistance: ≤0.2mmΩ
Waterproof degree:IP67
Flame class: UL94-VO
Safety Class: Ⅱ
Withdrawal force: ≥50N
Pin dimension: 4.0mm dia.
Insertion force: ≤50N
Insulation material: PPO
Connecting system: crimping connection
Contact material: copper, tin plated
Temperature range: -40 ℃ ~ +90 ℃
Rated voltage: 1000VDC
Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)
Contact resistance: ≤0.2mmΩ
Waterproof degree:IP67
Flame class: UL94-VO
Safety Class: Ⅱ
Withdrawal force: ≥50N
Pin dimension: 4.0mm dia.
Insertion force: ≤50N
Insulation material: PPO
Connecting system: crimping connection
Contact material: copper, tin plated
Temperature range: -40 ℃ ~ +90 ℃
